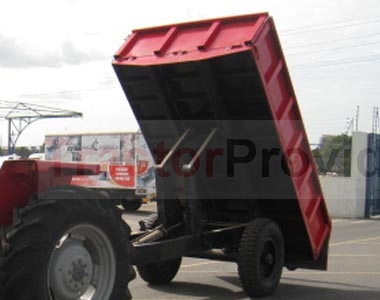

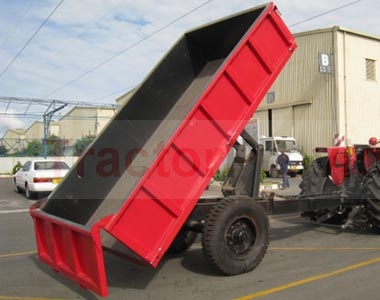

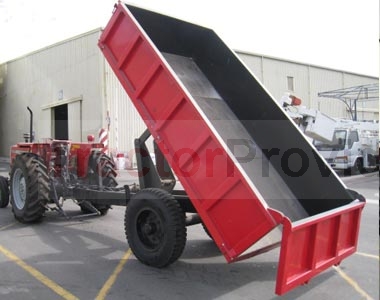

- Hydraulic Tipping Trailer 5 Ton
Hydraulic Tipping Trailer 5 Ton for sale
|
Type
|
Hyd.Tipping
|
|
Capacity
|
5 Ton
|
|
Vessel Size
|
11` X 6.5` X 2`
|
|
Floor
|
MS Sheet SWG 10
|
|
Side Wall
|
MS Sheet SWG 12
|
|
Chassis Frame
|
|
|
Lower Channel:
|
8` X 3`
|
|
Upper Channel:
|
6` X 3`
|
|
Axle Size
|
|
|
Length:
|
52"
|
|
Outer Dia:
|
5.5"
|
|
Wall Thickness:
|
3/8"
|
|
Rims
|
|
|
Qty
|
2
|
|
Size:
|
8.25-20
|
|
Tipping Device:
|
Double acting heavy duty locally made Ram with mechanical linkage.
|
|
Tipping Angle:
|
55 Degrees.
|
|
Max Lift Time:
|
10 Seconds at 1500-1789 rpm of Tractor Engine to its full height in empty condition.
|
|
Hydraulic kit For Trolley:
|
|
|
Spool Valve:
|
Imported from USA, Italy or U.K. Minimum Rod Dia. 20mm.
|
|
Selector Valve:
|
Imported from USA, Italy or U.K. Minimum Rod Dia. 20mm.
|
|
Hyd. Hoses:
|
Imported from above countries, the Crimping and Hoses should bear a pressure of 4000 psi. There should be no joint between two connections.
|
